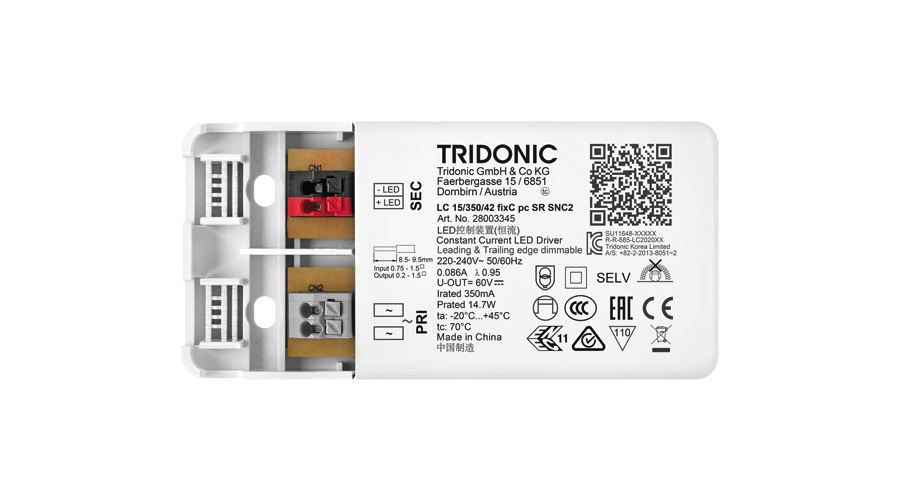

LC 15/350/42 fixC pc SR SNC2
SKU: 28003345
Product description
- Dimmable constant current LED driver (SELV)
- Independent driver with strain-relief housing
- Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
- Dimmable via leading edge and trailing edge phase dimmers
- Trailing edge is a benefit in terms of noise compared to leading edge
- Dimming range 5 to 100 % (depending on dimmer)
- For luminaires with F or M and MM as per EN 60598, VDE 0710 and VDE 0711
- Max. output power 14.7 W
- Output current 350 mA
- Nominal lifetime up to 50,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
- Casing: polycarbonate, white
- Type of protection IP20
- Push-in terminals
- 2 separate strain relief parts for input and output cables with highly robust clamps
Functions
- Overload protection
- Short-circuit protection
- No-load protection
- No output current overshoot at mains on/off
Order code: 28003345
Characteristics
Max Power: 14.7w @ 350mA Output current: 350mA Foward Voltage: 27-42V IP rating: IP20 Brand: TRIDONIC Dim Via: Phase Dim - Leading or Trailing edge Dimensions: 101.5(l)x49(w)29(h)mm Warranty: 5Years Downloads
$29.00Price
