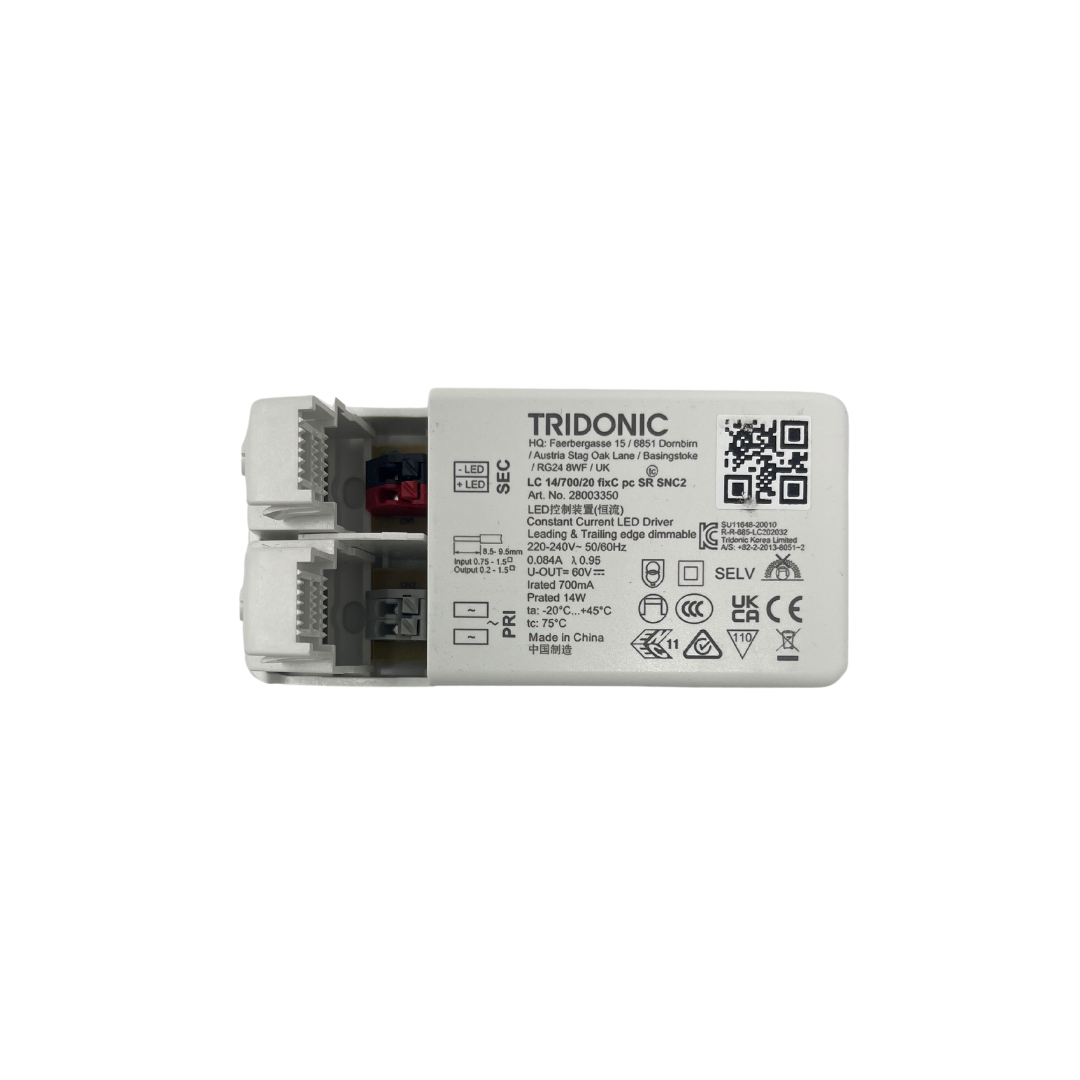

TRIDONIC Phase dimmable 700mA LED driver. Output Voltage range 3V - 20V

Product description
Dimmable constant current LED driver (SELV)
Independent driver with strain-relief housing
Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
Dimmable via leading edge and trailing edge phase dimmers
Trailing edge is a benefit in terms of noise compared to leading edge
Dimming range 5 to 100 % (depending on dimmer)
For luminaires with F or M and MM as per EN 60598, VDE 0710 and VDE 0711
Max. output power 14 W
Output current 700 mA
Nominal lifetime up to 50,000 h
5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Housing properties
Casing: polycarbonate, white
Type of protection IP20
Push-in terminals
2 separate strain relief parts for input and output cables with highly robust clamps
Functions
Overload protection
Short-circuit protection
No-load protection
No output current overshoot at mains on/off
